Products Description

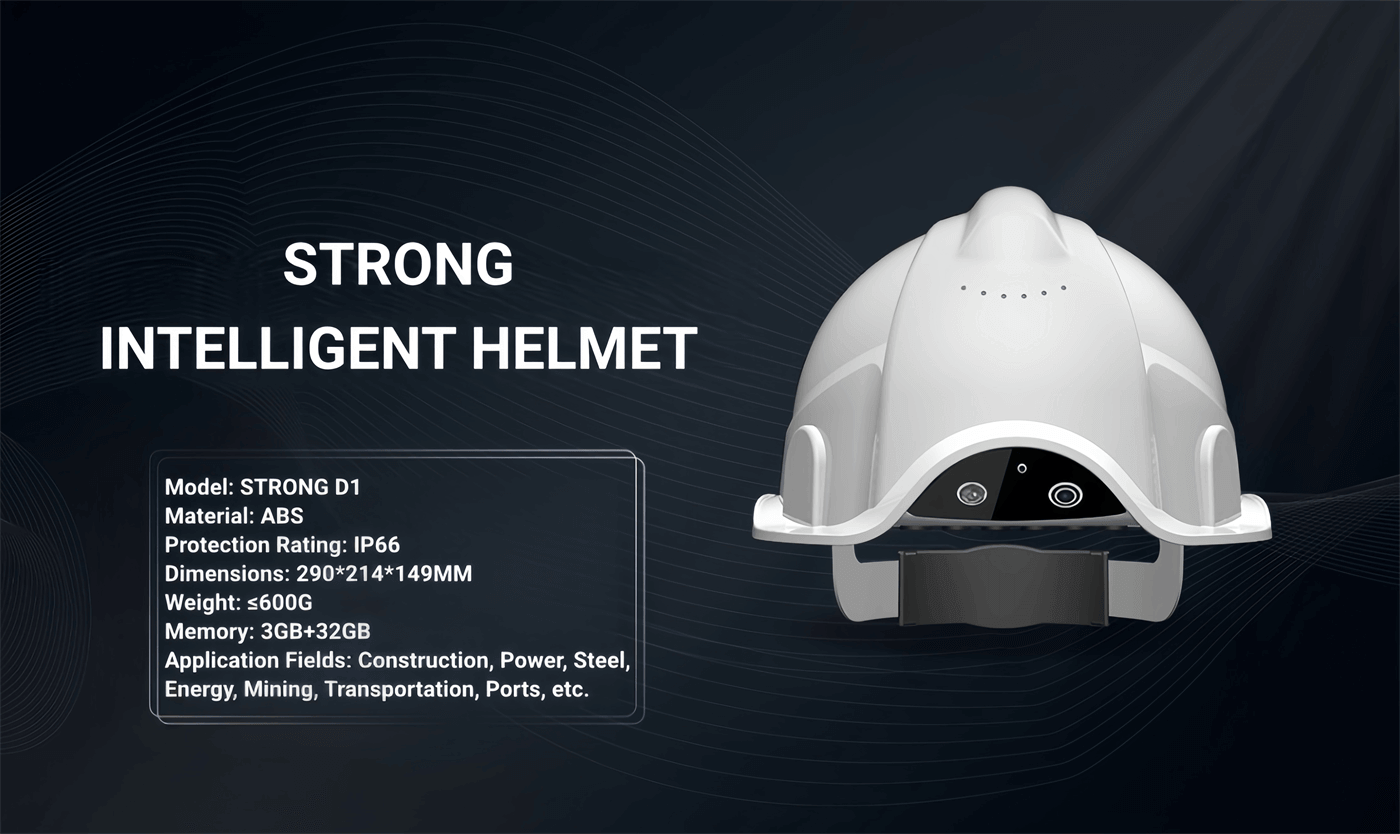

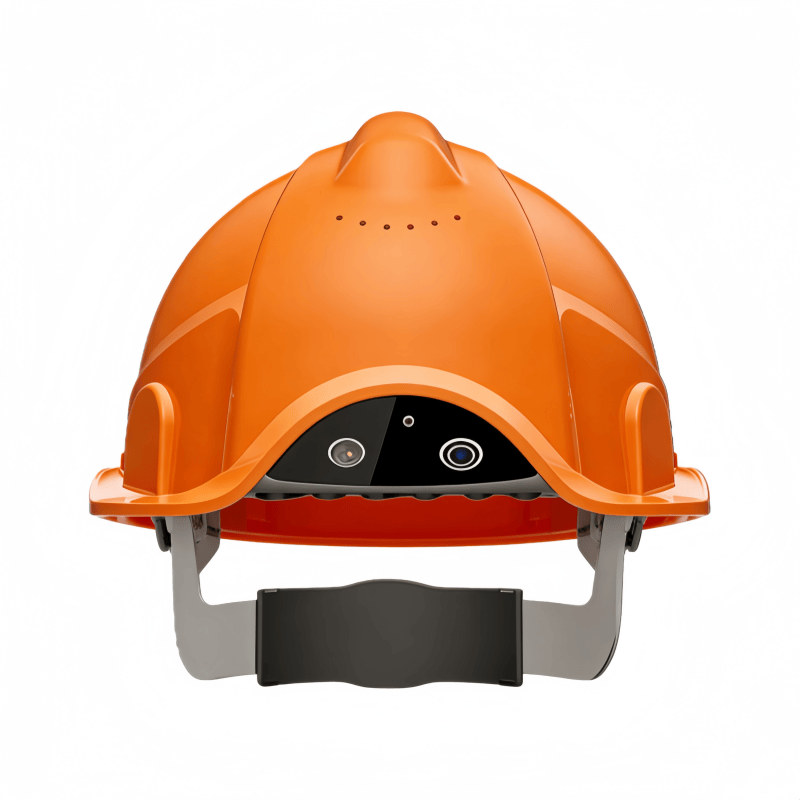

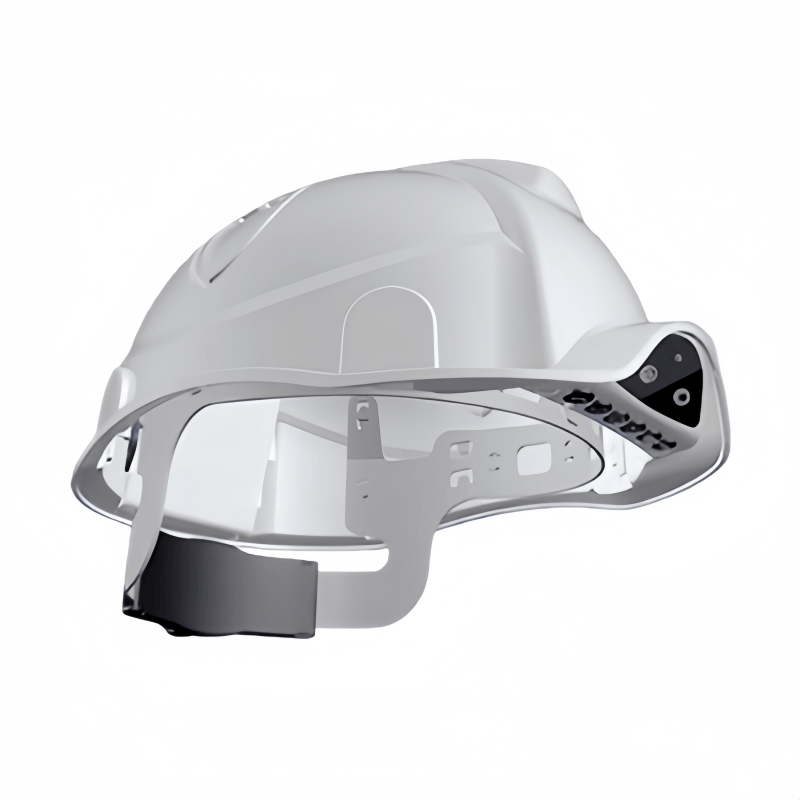

STRONG INTELLIGENT HELMET
Model: STRONG D1
Material: ABS
Protection Rating: IP66
Dimensions: 290214149MM
Weight: ≤600G
Memory: 3GB+32GB
Application Fields: Construction, Power, Steel, Energy, Mining, Transportation, Ports, etc.

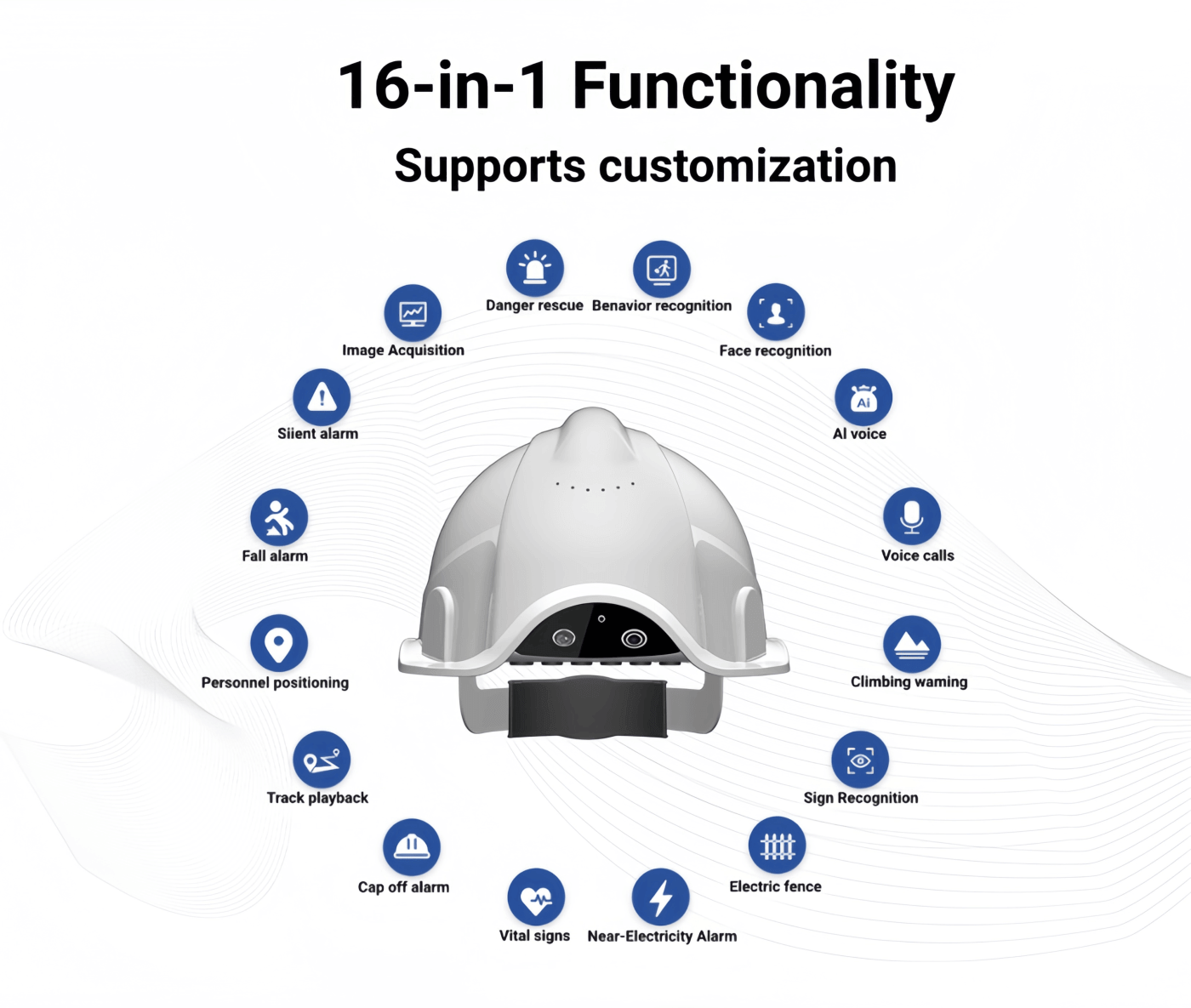

16-in-1 Functionality Supports customization
Image Acquisition,Silent alarm,Fall alarm,Personnel positioning,Track playback,Cap off alarm,Vital signs,Near-Electricity Alarm,
Danger rescue,Benavior recognition,Face recognition,AI voice,Voice calls,Climbing warning,Sign Recognition,Electric fence

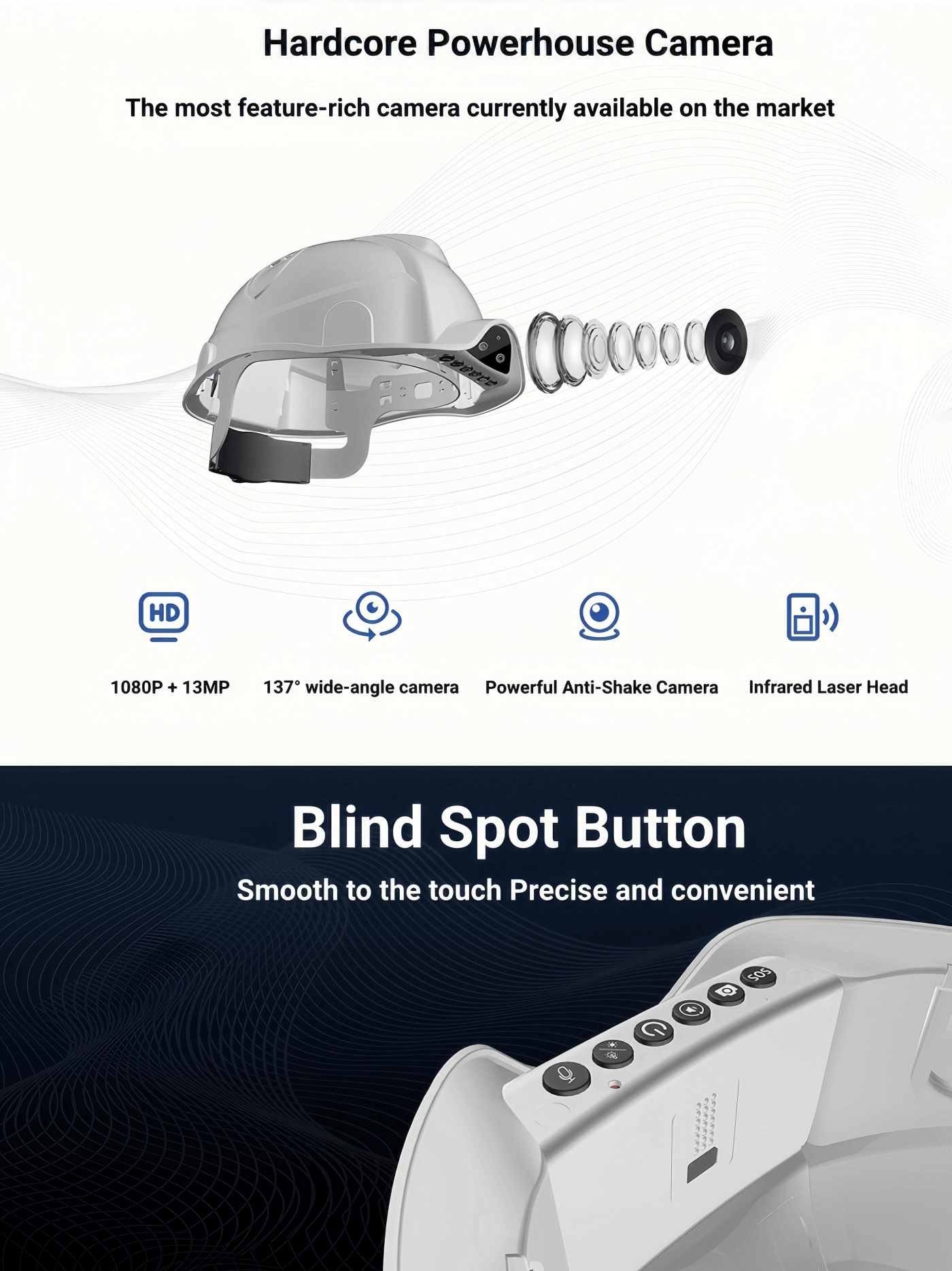

Hardcore Powerhouse Camera
The most feature-rich camera currently available on the market
1080P + 13MP
137° wide-angle camera
Powerful Anti-Shake Camera
Infrared Laser Head
Blind Spot Button
Smooth to the touch Precise and convenient

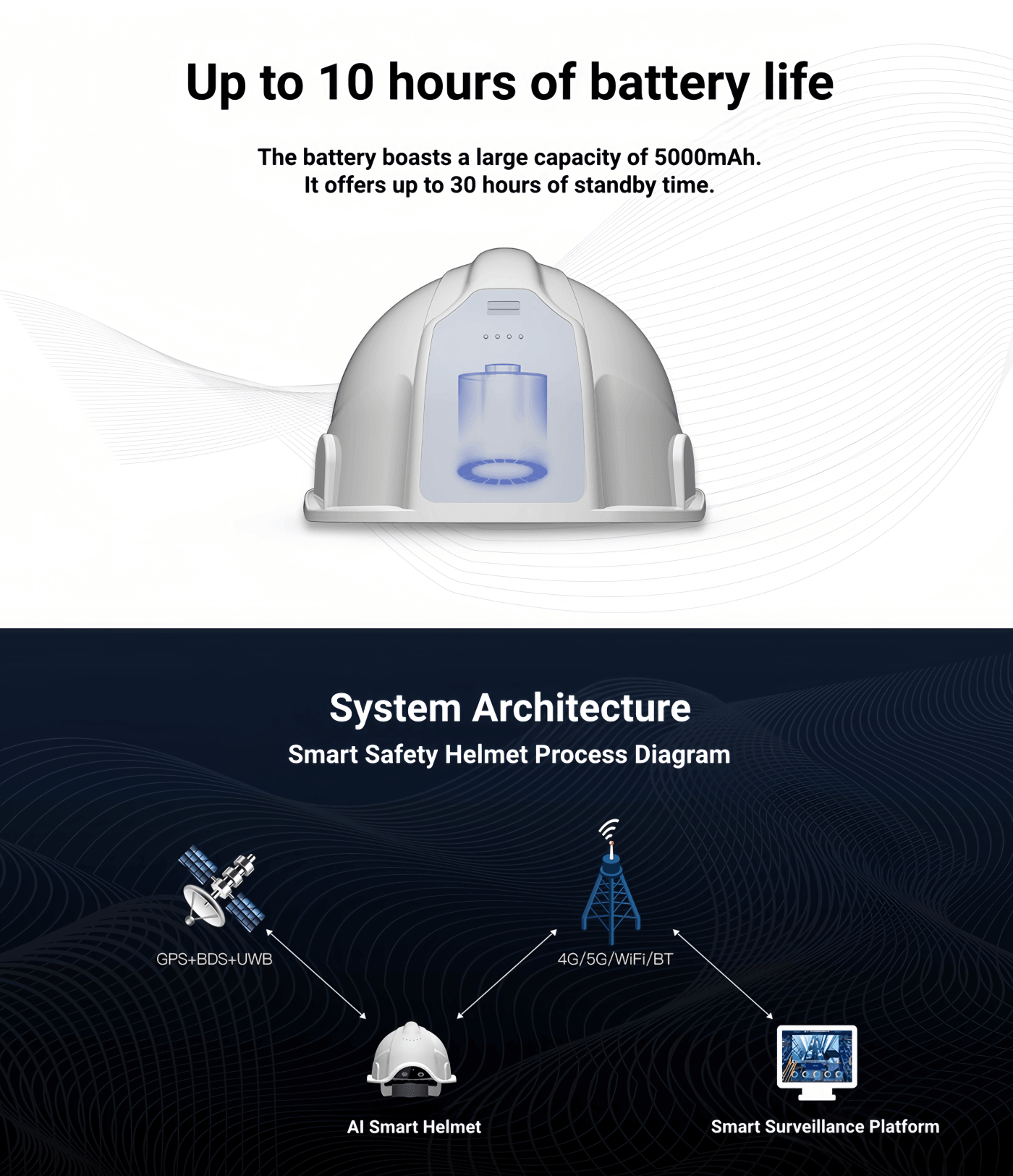

Up to 10 hours of battery life
The battery boasts a large capacity of 5000mAh.
It offers up to 30 hours of standby time.
System Architecture
Smart Safety Helmet Process Diagram
GPS+BDS+UWB
4G/5G/WiFi/BT
AI Smart Helmet
Smart Surveillance Platform

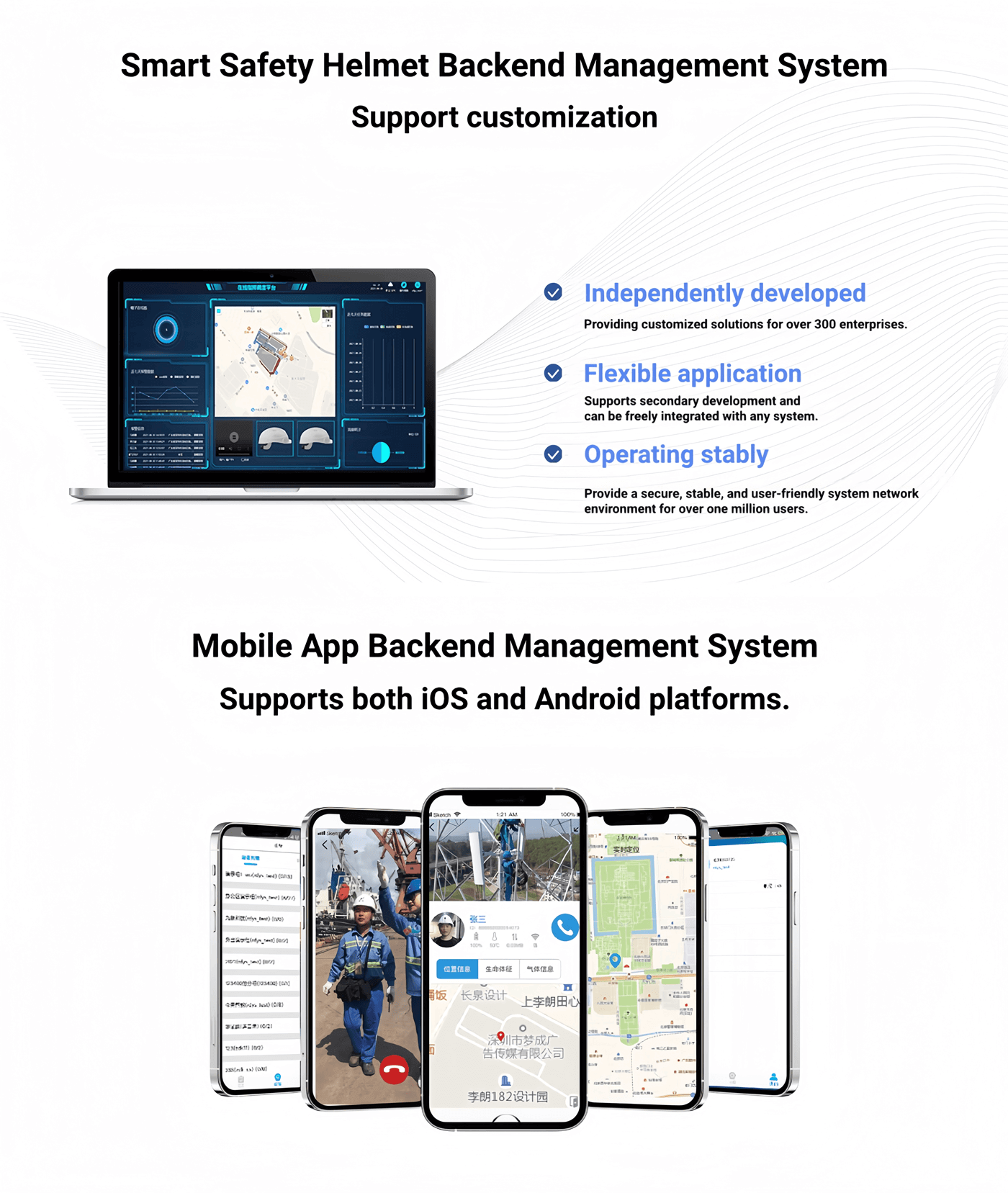

Smart Safety Helmet Backend Management System
Support customization
Independently developed
Providing customized solutions for over 300 enterprises.
Flexible application
Supports secondary development and can be freely integrated with any system.
Operating stably
Provide a secure, stable, and user-friendly system network environment for over one million users.
Mobile App Backend Management System
Supports both iOS and Android platforms.
Smart safety helmet is a comprehensive control platform that makes on-site operations smarter and safer. The Internet of Things, mobile Internet, artificial intelligence, big data, cloud computing and other technologies are used to realize real-time linkage between front-end field work and back-end management, synchronous transmission and storage of information, data collection and analysis and other functions.
Operators can control functions such as taking photos, recording videos, lighting, audio and video calls, laser lights, etc. through buttons or voice commands. In addition, the Smart safety helmet also supports near electric alarm, personnel positioning, trajectory playback, attendance management, silent alarm, battery level query, and temperature alarm. And achieve data synchronization between the front-end and back-end, real-time monitoring of the front-end by the back-end, and effective analysis of the collected data. In case of emergency, staff can actively call the back-end for real-time video calls according to SOS. If there are problems in the back-end, they can also directly initiate video calls with the staff in the back-end to improve work and management efficiency and reduce enterprise operating costs.

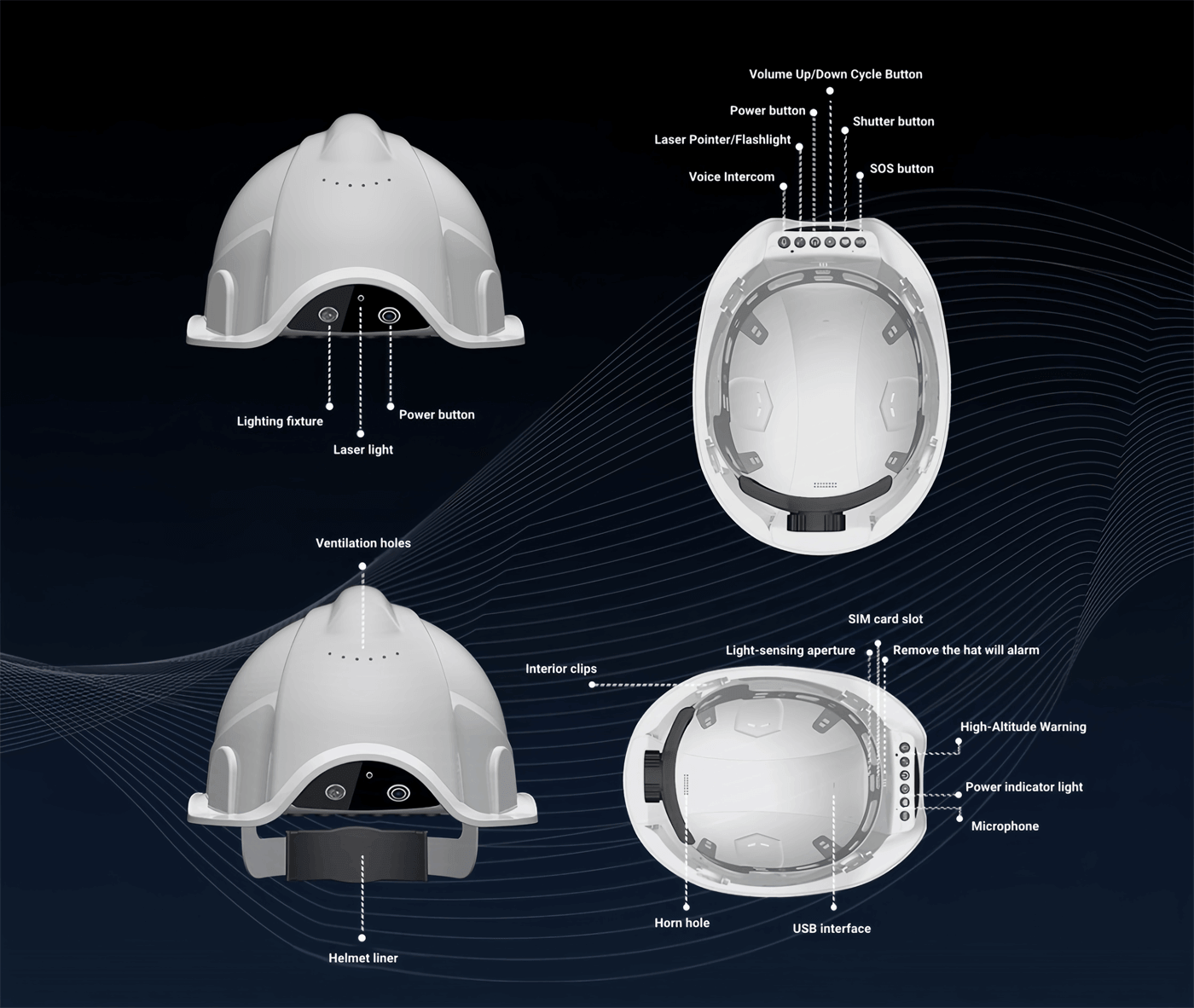

Name | Method | Function declaration |
Add / subtract the volume on / off | ------- | Booon default automatic recording and cycle automatic override |
Short press | Add or subtract short volume | |
Long press | Switch the machine key (3 seconds) | |
Talk back | Short press | Reset the height by the length |
Long press | Long press voice intercom | |
Photo button | Short press | Short press photo |
Long press | Long press it on to close the recording | |
Cry for help | Short press | Short press for help under the boot state |
SIM card slot | ------- | The SIM card can be inserted into the gap in the direction of the icon, and the SIM card |
USB joggle | ------- | In the boot state, the data cable can be connected to the computer with the data transfer and charging |
------- | In the shutdown state, it can be charged with the data cable connection | |
Tail warning light | Quick flashing | Warning way |
AI call | Trigger way |
A: Usually we make transaction via trade assurance, after we set up an order, you can pay with credit card, visa, E-checking, western union or T/T.5.
Q2: What about the lead time?
A: For order under 50 sets, we can ship in 10 days after payment made. For order more than 100 sets, we can ship in 15 days after payment made.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Ship air to door takes around 15 days.
Q4:Why does the hat restart automatically after it is turned off?
A: When it is turned off, you can let it go after the prompt tone and light are finished. Pressing it for too long will trigger the next power-on
Q5: Can I print my logo on the fiture?
A: Yes, we can print your logo on the supporter.
Q6: End the call rear safety helmet or call status
A: Because our administrator account can log on to multiple terminals at the same time, when the hat sos emergency call is sent to the background, the call status is at least 30 seconds, so that other administrators can answer the call.
Q7: Trigger mechanism of off-hat alarm
Q8: Why is the current height of the hat sometimes negative?
A:The initial height is defined at startup. The current hat height is negative when it is lower than the height defined at startup.
