Products Description

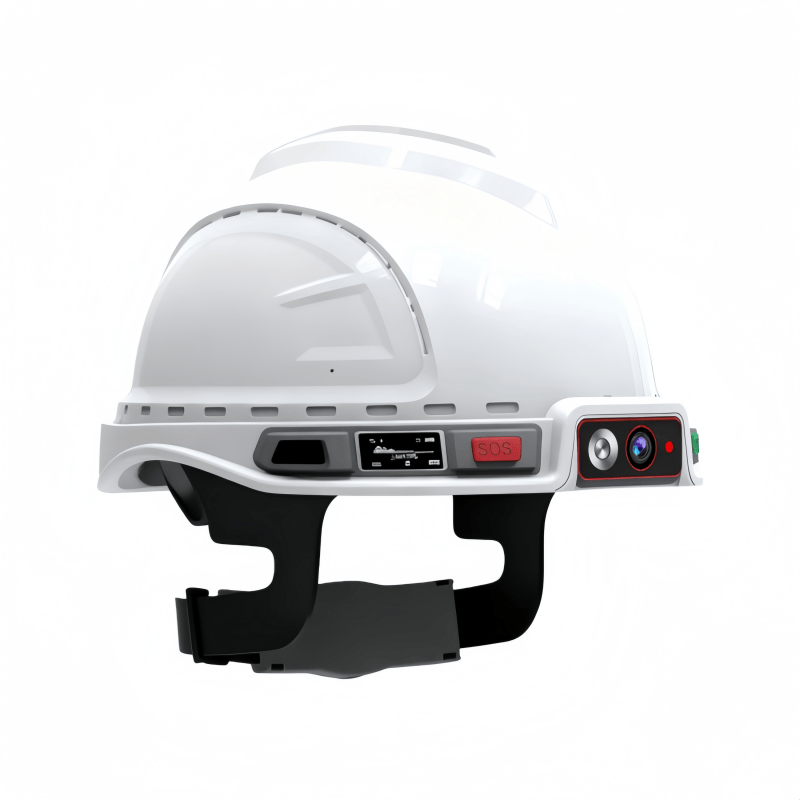

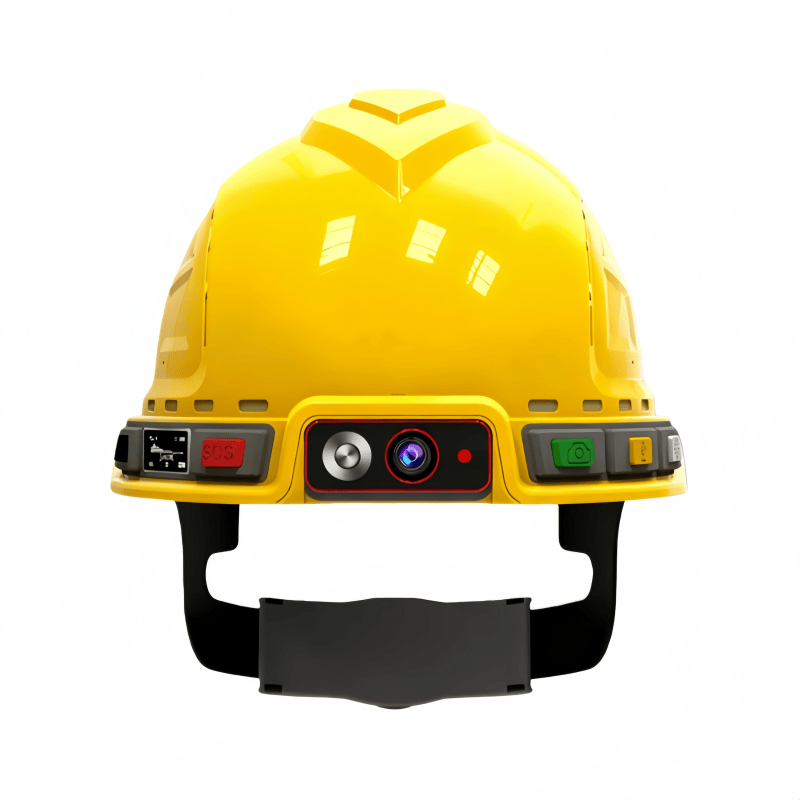

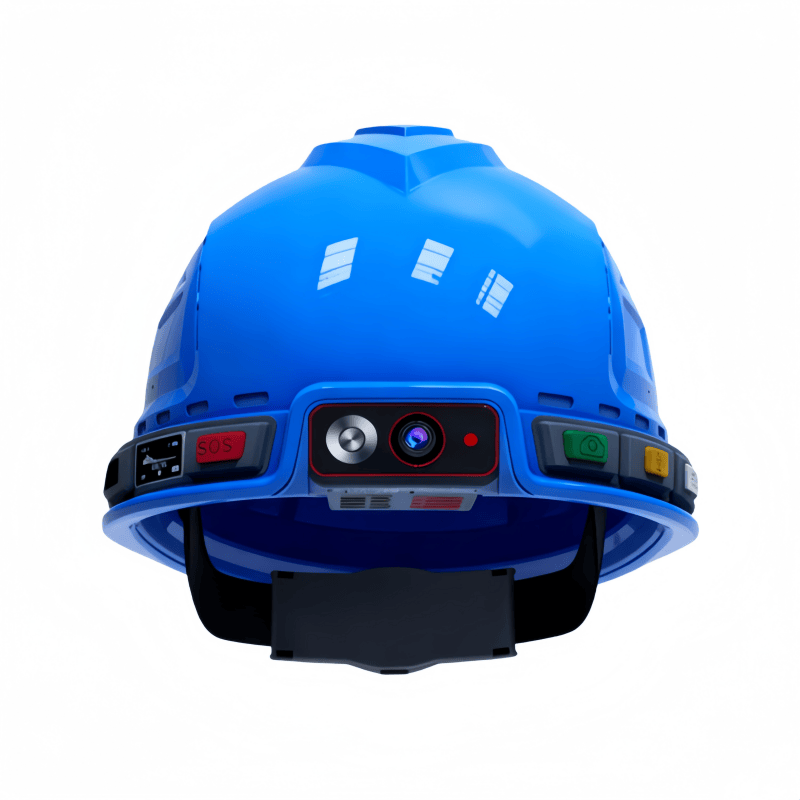

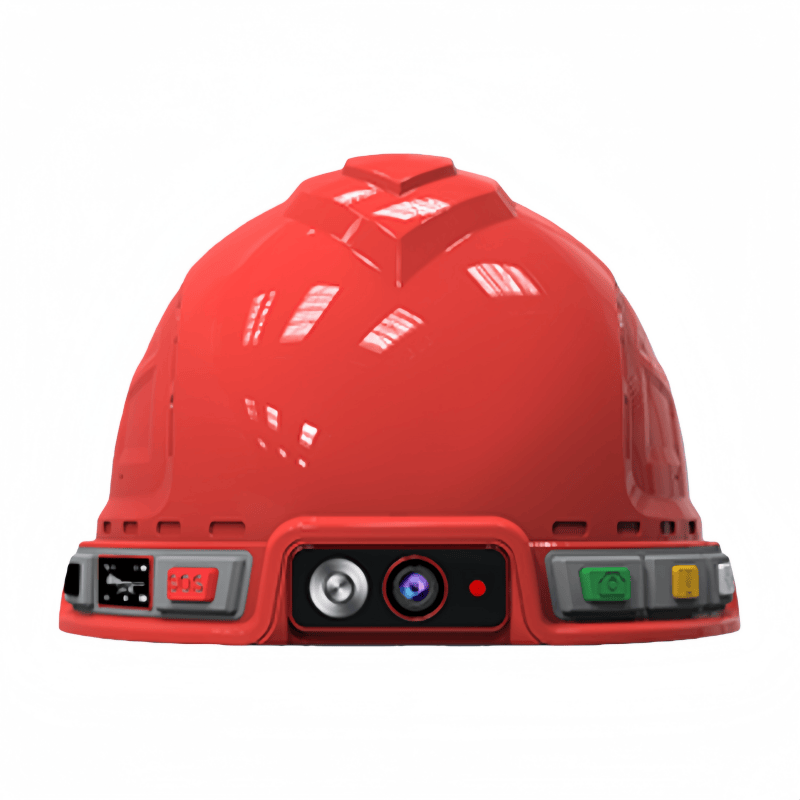

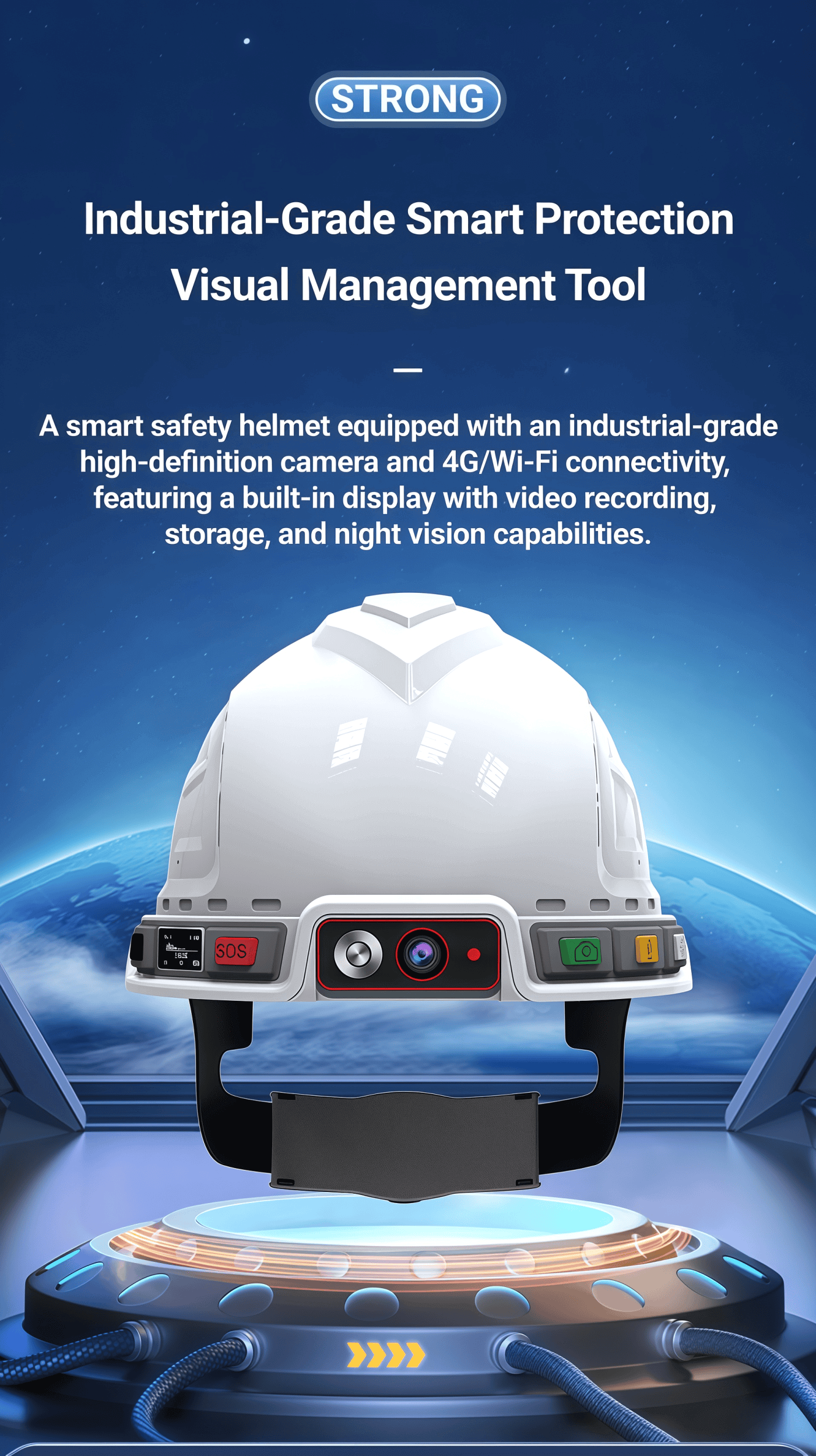

Industrial-Grade Smart Protection Visual Management Tool
A smart safety helmet equipped with an industrial-grade high-definition camera and 4G/Wi-Fi connectivity, featuring a built-in display with video recording, storage, and night vision capabilities.
Reasons for Choosing the M7806
Process upgrade.
Outstanding performance.
Video and Surveillance
Supports real-time 1080P HD monitoring and video/voice calls to meet remote collaboration needs.
Alarm function
Features include SOS emergency alerts, impact detection, fall detection, helmet removal alerts, and proximity to electrical hazards. Comprehensive safety protection.
Positioning and Storage
Reports location to the backend every 10 seconds (GPS/BeiDou); Built-in 64GB storage; Loop records 1080P/720P video; Exportable via USB.
Easy to use
Supports AI voice/camera button photography, removable battery charging, and button voice prompts.
Core Function
Industrial-grade high-definition camera
4G/WIFI Network
Features a built-in screen with video recording, storage, and night vision capabilities.
Voice and Video Calls,Real-time intercom,Real-time video surveillance
Electronic fence,SOS alarm,GPS positioning,Fall alarm,Hat removal alarm
Impact alarm,AI Voice,High temperature alarm,Silent alarm
Proximity Induction,Remote guidance,Visual Management

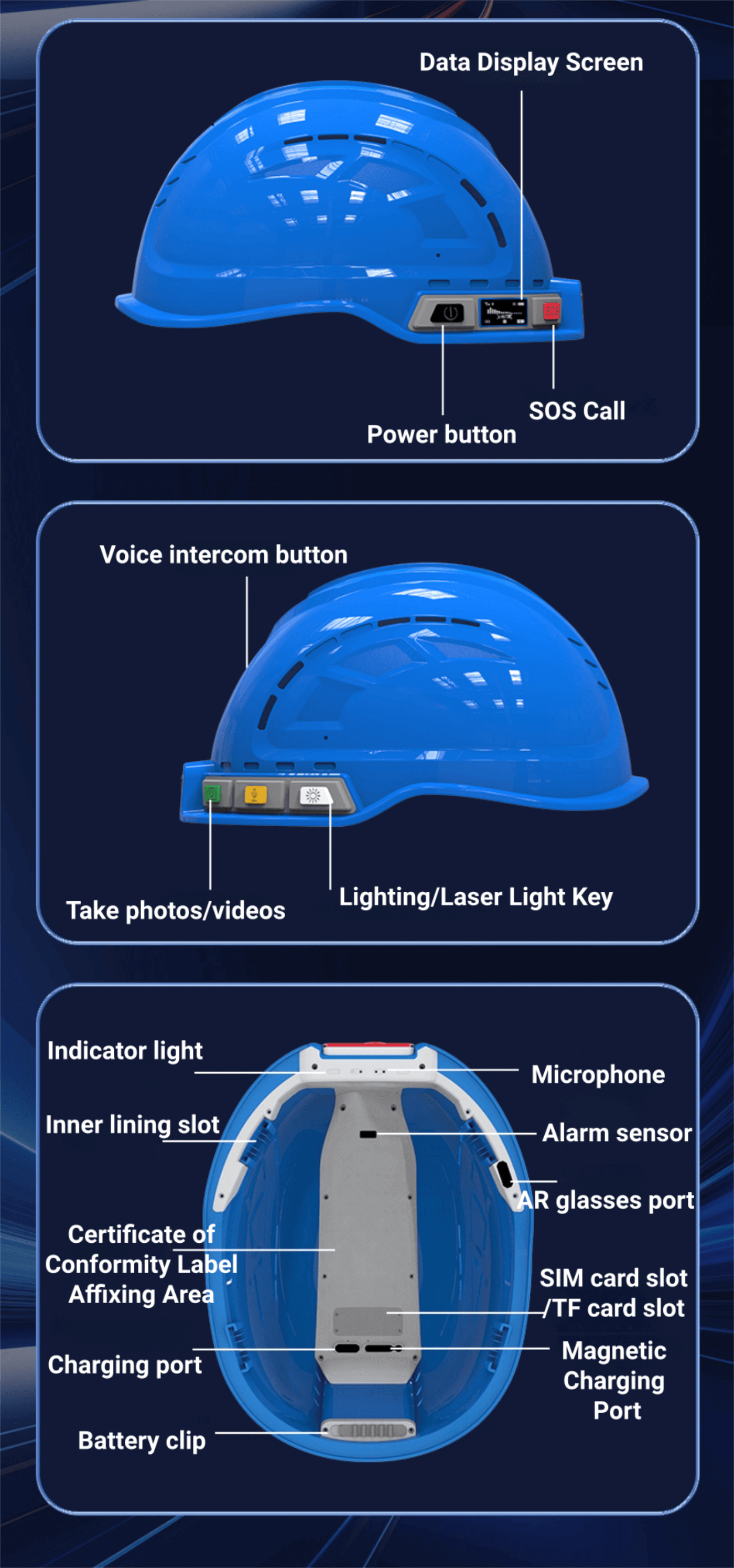

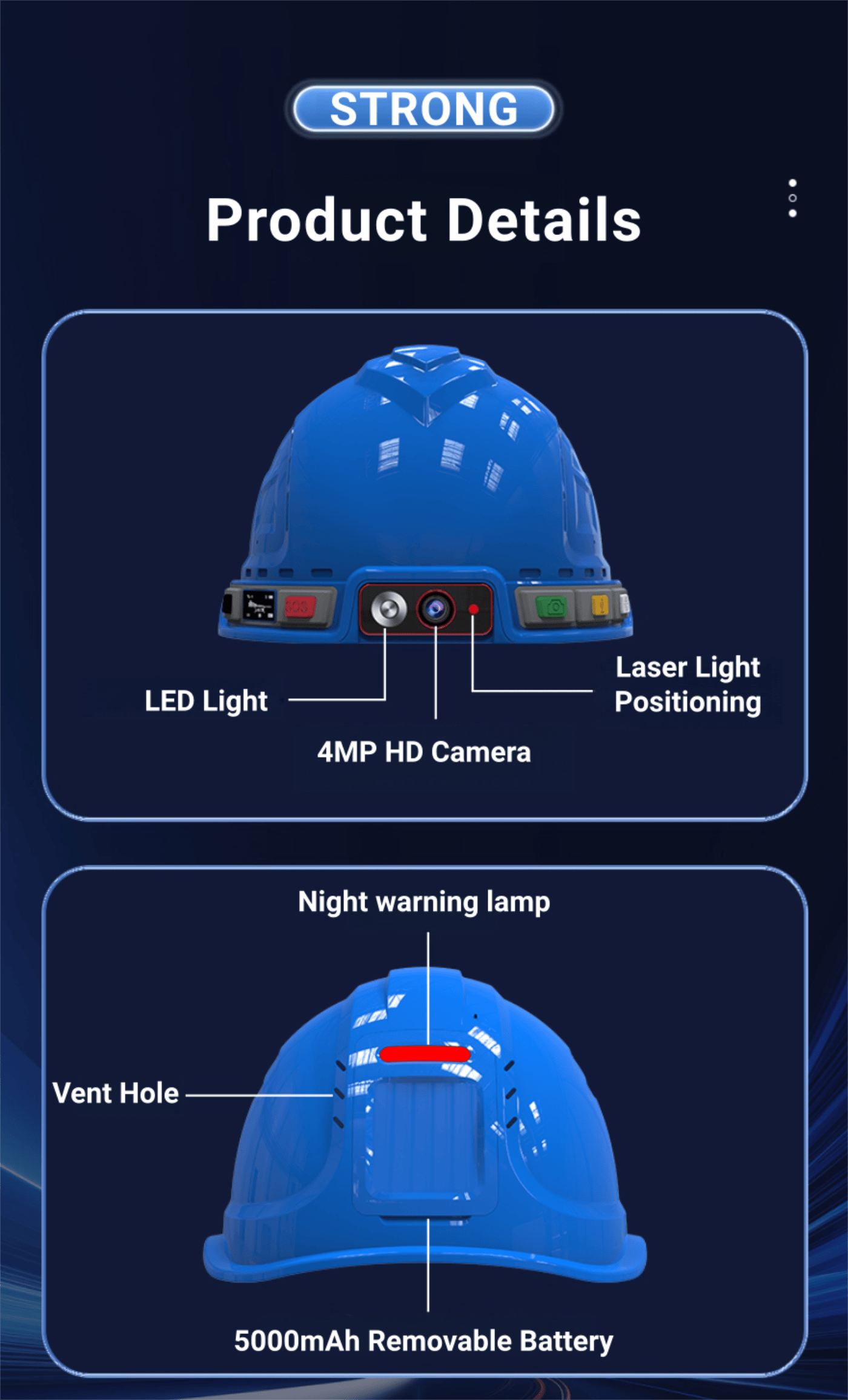

Product Details
LED Light
4MP HD Camera
Laser Light Positioning
Night warning lamp
Vent Hole
5000mAh Removable Battery

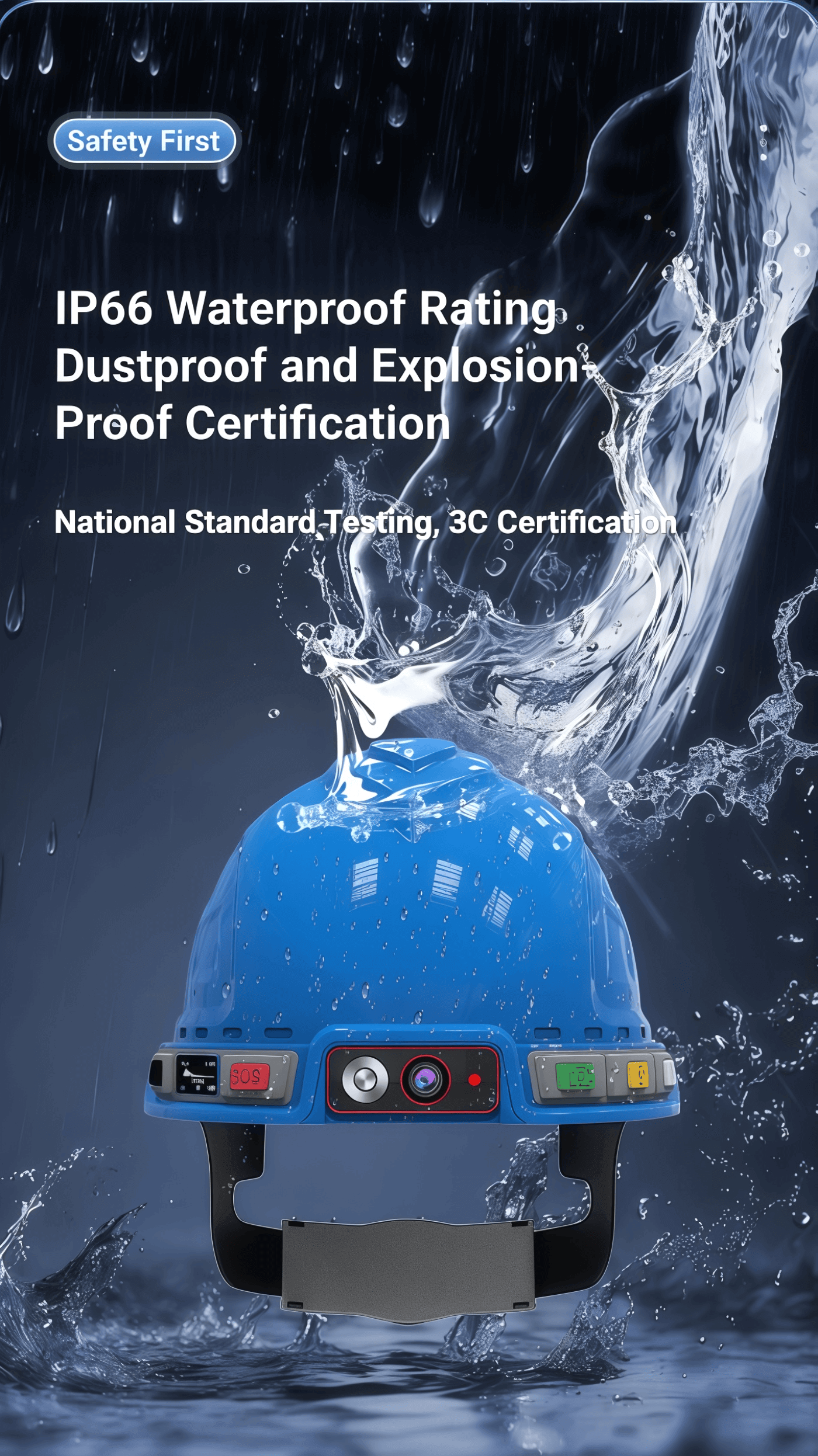

Safety First
IP66 Waterproof Rating, Dustproof and Explosion-Proof Certification
National Standard Testing, 3C Certification
Big date IoT
Highly Functional
Autonomous & Controllable
With 22 major features, it fully leverages big data analytics
combined with cloud computing, big data, IoT, and other technologies to present multiple intelligent business scenarios integrating "people + machines + standards."
Supports customized development.
Smart safety helmet is a comprehensive control platform that makes on-site operations smarter and safer. The Internet of Things, mobile Internet, artificial intelligence, big data, cloud computing and other technologies are used to realize real-time linkage between front-end field work and back-end management, synchronous transmission and storage of information, data collection and analysis and other functions.
Operators can control functions such as taking photos, recording videos, lighting, audio and video calls, laser lights, etc. through buttons or voice commands. In addition, the Smart safety helmet also supports near electric alarm, personnel positioning, trajectory playback, attendance management, silent alarm, battery level query, and temperature alarm. And achieve data synchronization between the front-end and back-end, real-time monitoring of the front-end by the back-end, and effective analysis of the collected data. In case of emergency, staff can actively call the back-end for real-time video calls according to SOS. If there are problems in the back-end, they can also directly initiate video calls with the staff in the back-end to improve work and management efficiency and reduce enterprise operating costs.
Name | Method | Function declaration |
Add / subtract the volume on / off | ------- | Booon default automatic recording and cycle automatic override |
Short press | Add or subtract short volume | |
Long press | Switch the machine key (3 seconds) | |
Talk back | Short press | Reset the height by the length |
Long press | Long press voice intercom | |
Photo button | Short press | Short press photo |
Long press | Long press it on to close the recording | |
Cry for help | Short press | Short press for help under the boot state |
SIM card slot | ------- | The SIM card can be inserted into the gap in the direction of the icon, and the SIM card |
USB joggle | ------- | In the boot state, the data cable can be connected to the computer with the data transfer and charging |
------- | In the shutdown state, it can be charged with the data cable connection | |
Tail warning light | Quick flashing | Warning way |
AI call | Trigger way |
A: Usually we make transaction via trade assurance, after we set up an order, you can pay with credit card, visa, E-checking, western union or T/T.5.
Q2: What about the lead time?
A: For order under 50 sets, we can ship in 10 days after payment made. For order more than 100 sets, we can ship in 15 days after payment made.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Ship air to door takes around 15 days.
Q4:Why does the hat restart automatically after it is turned off?
A: When it is turned off, you can let it go after the prompt tone and light are finished. Pressing it for too long will trigger the next power-on
Q5: Can I print my logo on the fiture?
A: Yes, we can print your logo on the supporter.
Q6: End the call rear safety helmet or call status
A: Because our administrator account can log on to multiple terminals at the same time, when the hat sos emergency call is sent to the background, the call status is at least 30 seconds, so that other administrators can answer the call.
Q7: Trigger mechanism of off-hat alarm
Q8: Why is the current height of the hat sometimes negative?
A:The initial height is defined at startup. The current hat height is negative when it is lower than the height defined at startup.
